99 9127 00 08 | binder

Panel plug, 8 pole, solder cup, snap lock, straight, 99 9127 00 08

Order No.: 67F8064
EAN: 4099889732931
MPN:
99 9127 00 08
Series: 720

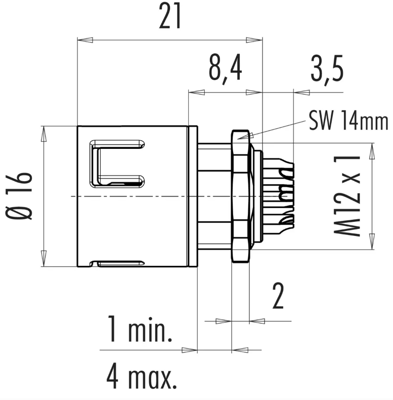

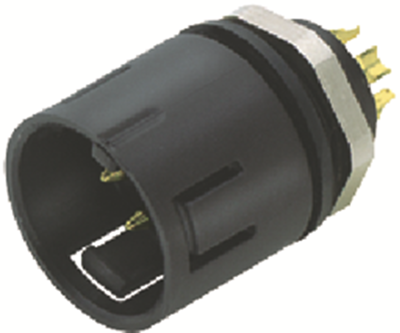

99 9127 00 08 binder Other Circular Connectors Image 1
99 9127 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.1515 € *
Next delivery: 90 pcs. on 2025-08-29
Total Price:
8.15 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1515 €
10 pcs.
7.3423 €
50 pcs.
6.4498 €
100 pcs.
5.8191 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 720.

With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: max. 0.25 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 910 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +80 °C. Insertion/removal cycles: min. 500.

Male panel mount connectors, solder terminals, type 720.

The adapters for front-panel mounting are described below and are available on separate order.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9127-00-08, 8p, 125 V, 2.0 A

Technical specifications
Filter Property Value
Shell Material PA
Contact connection solder cup
Additional parts equipped
Cable cross-section 0.25 mm²
Pin number 8 pole
contact surface gold-plated
Assembly PCB mounting
Orientation straight
Version panel plug
Type of locking snap lock
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
RoHS conform Yes
