99 9126 03 08 | binder

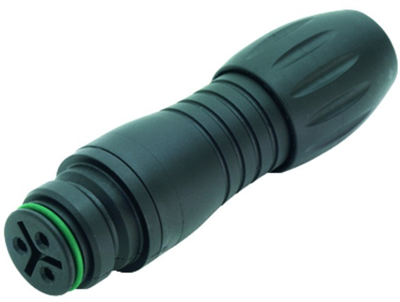

Jack, 8 pole, solder cup, snap lock, straight, 99 9126 03 08
Unit Price (€ / pc.)
9.8056 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.81 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8056 €
10 pcs.
9.1154 €
50 pcs.
8.4847 €
100 pcs.
7.6279 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 99-9126-03-08, Binder
Snap-In IP67 female cable connector, Contacts: 8, 2.5 - 4.0 mm, shielding is not possible, solder, IP67, VDE
Technical Data
- Contact connection: Solder cup
- Rated voltage: 125 V
- Number of positions: 8
- Housing material: PA
- Contact plating: Au (gold)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Contact connection | solder cup | |
| Type of locking | snap lock | |
| Cable diameter | 2.5 to 4 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
