99 9125 50 08 | binder
Plug, 8 pole, solder connection, snap lock, straight, 99 9125 50 08
Unit Price (€ / pc.)
11.9833 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.98 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9833 €
10 pcs.
11.1384 €
50 pcs.
10.3530 €
100 pcs.
9.3058 €
*incl. VAT plus shipping costs
Subject to prior sale

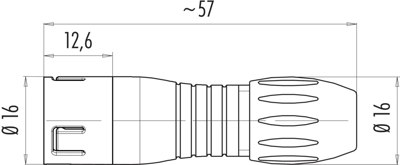

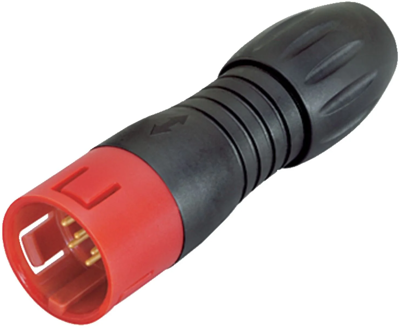

Male cable connector, 99 9125 50 08, binder
Snap-In IP67 Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67, VDE.
Technical specifications
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | snap lock | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
