99 9115 00 05 | binder

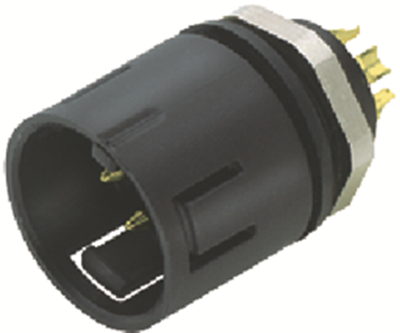

Panel plug, 5 pole, solder cup, snap lock, straight, 99 9115 00 05
Unit Price (€ / pc.)
9.6390 € *
Available: 61 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6390 €
10 pcs.
8.4847 €
100 pcs.
7.4256 €
250 pcs.
7.1638 €
1000 pcs.
6.6759 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, type Binder 720.
With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: max. 0.75 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 1750 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +80 °C. Insertion/removal cycles: min. 500.
Male panel mount connectors, solder terminals, type 720.
The adapters for front-panel mounting are described below and are available on separate order.
Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9115-00-05, 5p, 125 V, 5.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Shell Material | PA | |
| Orientation | straight | |
| Assembly | PCB mounting | |
| Type of locking | snap lock | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| Version | panel plug | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
