99 9113 470 05 | binder
Plug, 5 pole, solder connection, snap lock, straight, 99 9113 470 05
Unit Price (€ / pc.)
10.2102 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.21 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2102 €
10 pcs.
9.5081 €
50 pcs.
8.8417 €
100 pcs.
7.9492 €
*incl. VAT plus shipping costs
Subject to prior sale

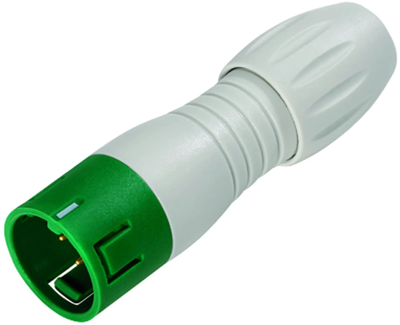

Male cable connector, 99 9113 470 05, binder
Snap-In IP67 (miniature) Male cable connector, Contacts: 5, 4.0-6.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | snap lock | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
