99 9113 03 05 | binder

Plug, 5 pole, solder cup, snap lock, straight, 99 9113 03 05

Order No.: 67F8006
EAN: 4099889732733
MPN:
99 9113 03 05
Series: 720

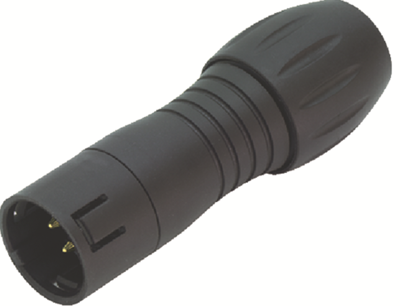

99 9113 03 05 binder Other Circular Connectors Image 1

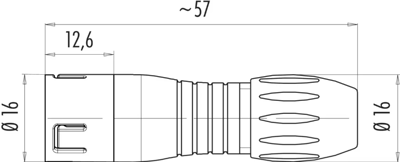

99 9113 03 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.3542 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.35 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3542 €
10 pcs.
6.6164 €
50 pcs.
5.8310 €
100 pcs.
5.2360 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 720.

With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: 3- to 5-pole max. 0.75 mm², 8- and 12-pole max. 0.25 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 3-pole 2950 V, 5- and 8-pole 1750 V, 12-pole 910 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: –40 to +80 °C. Insertion/removal cycles: min. 500.

Cable plug connectors, type 720.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9113-03-05, 5p, 125 V, 5.0 A, 2.5 to 4.0 mm

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.75 mm²
Pin number 5 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 2.5 to 4 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
