99 9108 00 03 | binder

Panel socket, 3 pole, solder cup, snap lock, straight, 99 9108 00 03

Order No.: 67F8070
EAN: 4099889732955
MPN:
99 9108 00 03
Series: 720

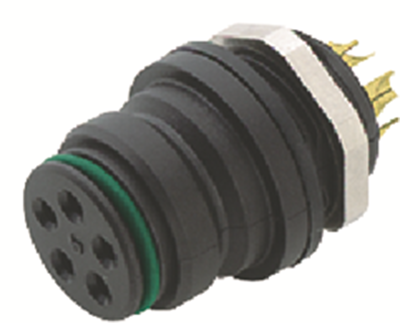

99 9108 00 03 binder Other Circular Connectors Image 1
99 9108 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.1523 € *
Available: 38 pcs.
Available in 5 Days: 69 pcs. - if ordered today
Total Price:
6.15 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1523 €
10 pcs.
5.7120 €
50 pcs.
5.2598 €
100 pcs.
4.7838 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 720.

With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: max. 0.75 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 2950 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +80 °C. Insertion/removal cycles: min. 500.

Female panel mount connector, solder terminals, type 720.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9108-00-03, 3p, 250 V, 7.0 A

Technical specifications
Filter Property Value
Version panel socket
Cable cross-section 0.75 mm²
Pin number 3 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 6 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
