99 9105 400 03 | binder

Plug, 3 pole, solder connection, snap lock, straight, 99 9105 400 03

Order No.: 70P1263
EAN: 4099891701253
MPN:
99 9105 400 03
Series: 720

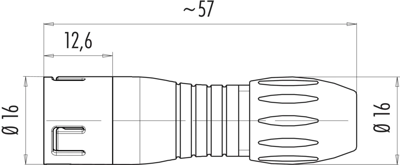

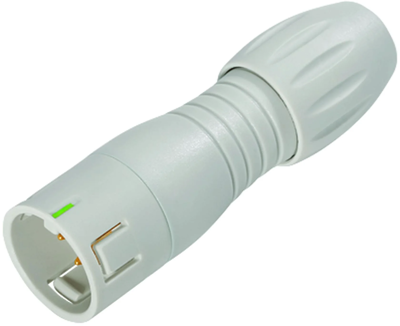

99 9105 400 03 binder Other Circular Connectors Image 1
99 9105 400 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.7350 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7350 €
10 pcs.
6.9734 €
50 pcs.
6.1404 €
100 pcs.
5.5097 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 9105 400 03, binder

Snap-In IP67 (miniature) Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67.

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 3 pole
Orientation straight
Contact connection solder connection
Type of locking snap lock
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
