99 9105 00 03 | binder

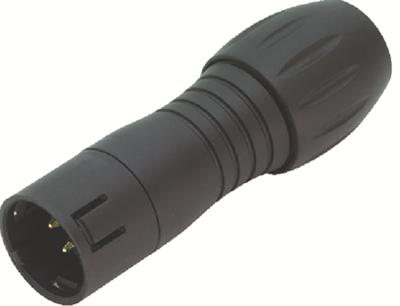

Plug, 3 pole, solder connection, snap lock, straight, 99 9105 00 03
Unit Price (€ / pc.)
5.1170 € *
Available: 105 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1170 €
10 pcs.
4.6053 €
50 pcs.
4.3197 €
100 pcs.
4.0579 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99-9105-50-03, Franz Binder
Snap-In IP67 Male connector, poles 3, 4.0-6.0 mm, unshielded, solder, IP67, VDE
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Shell Material | PA | |
| Orientation | straight | |
| Assembly | cable assembly | |
| Type of locking | snap lock | |
| Pin number | 3 pole | |
| Version | plug | |
| Cable diameter | 4 to 6 mm | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
