99 6518 000 12 | binder
Jack, 12 pole, crimp connection, bayonet locking, straight, 99 6518 000 12
Unit Price (€ / pc.)
27.2748 € *
Available: 2 pcs.
Total Price:
27.27 € *
Price list
Quantity
Price per unit*
1 pcs.
27.2748 €
10 pcs.
24.0023 €
50 pcs.
22.3720 €
150 pcs.
21.3843 €
500 pcs.
20.2895 €
*incl. VAT plus shipping costs
Subject to prior sale

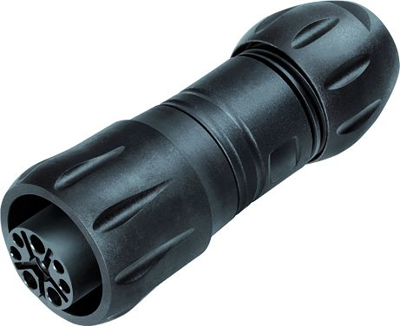

Female cable connector, 99-6518-000-12, Franz Binder
Bayonet HEC Female connector, poles 12, 7.0-13.0 mm, unshielded, crimping , IP68/IP69K, UL, VDE
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | bayonet locking | |
| Contact connection | crimp connection | |
| Orientation | straight | |
| Version | jack | |
| Shell Material | PA | |
| Pin number | 12 pole | |
| Cable diameter | 7 to 13 mm | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
