99 6501 000 08 | binder

Plug, 4 + 3 polig + PE, crimp connection, bayonet locking, straight, 99 6501 000 08

Order No.: 66P4654
EAN: 4099889702095
MPN:
99 6501 000 08
Series: 696

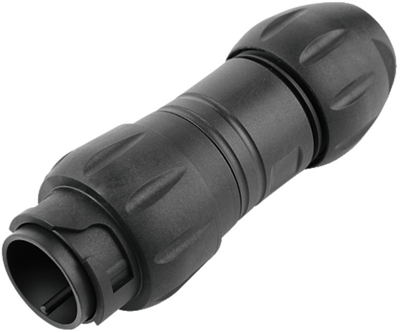

99 6501 000 08 binder Other Circular Connectors Image 1
99 6501 000 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.9575 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.96 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9575 €
10 pcs.
15.7794 €
50 pcs.
14.6727 €
100 pcs.
13.6374 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 99-6501-000-08, BINDER

Bayonet HEC Male cable connector, Contacts: 4+3+PE, 7.0-17.0 mm, unshielded, crimp.

Features

  • Contact material: CuZn
  • Degree of protection: IP68
  • Pollution degree: 2
  • Overvoltage category: I
Technical specifications
Type of locking bayonet locking
Cable diameter 7 to 17 mm
Pin number 4 + 3 polig + PE
Assembly cable assembly
Orientation straight
Additional parts equipped
Version plug
Contact connection crimp connection
Shell Material PA
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
