99 5895 15 24 | binder
Plug, 24 pole, solder connection, screw locking, straight, 99 5895 15 24
Unit Price (€ / pc.)
35.8309 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
35.83 € *
Price list
Quantity
Price per unit*
1 pcs.
35.8309 €
10 pcs.
33.6770 €
25 pcs.
31.3208 €
50 pcs.
29.1312 €
*incl. VAT plus shipping costs
**Subject to prior sale

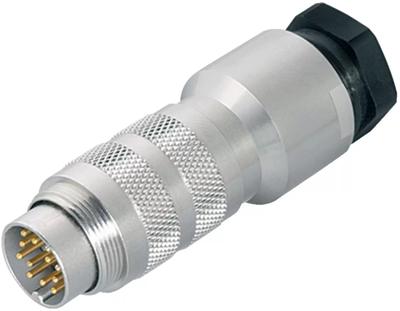

Male cable connector, 99 5895 15 24, binder
M16 IP67 Male cable connector, Contacts: 24, 8.0-10.0 mm, shieldable, solder, IP67, UL.
Technical specifications
| Version | Stecker | |
| Cable cross-section | 0,14 mm² | |
| Pin number | 24-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 8 bis 10 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
