99 5882 15 07 | binder

Jack, 7 pole, solder connection, screw locking, straight, 99 5882 15 07

Order No.: 70P0245
EAN: 4099891694999
MPN:
99 5882 15 07
Series: 423

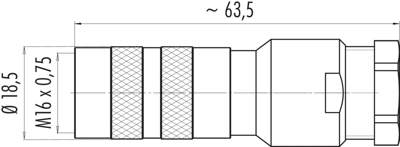

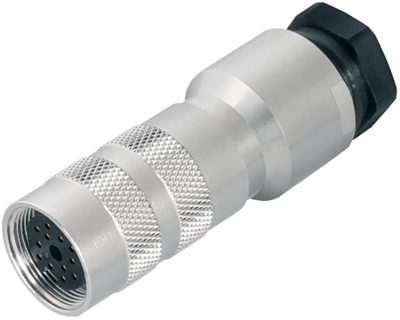

99 5882 15 07 binder Other Circular Connectors Image 1
99 5882 15 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.3367 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.34 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3367 €
10 pcs.
20.0515 €
50 pcs.
18.8496 €
100 pcs.
17.7072 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 5882 15 07, binder

M16 IP67 Female cable connector, Contacts: 7 DIN, 8.0-10.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 8 to 10 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
