99 5805 15 16 | binder

Plug, 16 pole, solder connection, screw locking, straight, 99 5805 15 16

Order No.: 66P4616
EAN: 4099889702071
MPN:
99 5805 15 16
Series: 423

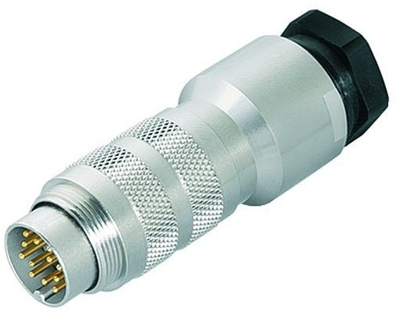

99 5805 15 16 binder Other Circular Connectors Image 1

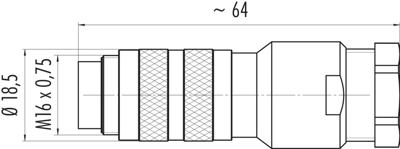

99 5805 15 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.5493 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.55 € *
Price list
Quantity
Price per unit*
1 pcs.
25.5493 €
10 pcs.
24.0142 €
25 pcs.
22.5743 €
50 pcs.
21.2177 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-5805-15-16, BINDER

M16 IP67 Male cable connector, Contacts: 16, 8.0-10.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 16 pole
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
