99 5682 75 07 | binder
Angle coupling, 7 pole, solder connection, screw locking, angled, 99 5682 75 07
Unit Price (€ / pc.)
20.1110 € *
Available: 18 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1110 €
10 pcs.
18.6949 €
25 pcs.
17.2074 €
50 pcs.
15.6604 €
*incl. VAT plus shipping costs
Subject to prior sale

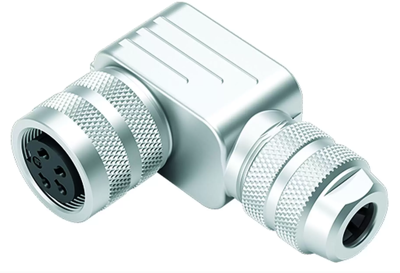

Socket connector, 99 5682 75 07, Franz Binder
M16 Female angled connector, Contacts: 7 (07-b), 6.0-8.0 mm, shieldable, solder, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 7 pole | |
| Shell Material | CuZn | |
| Cable cross-section | 0.75 mm² | |
| Version | angle coupling | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Cable diameter | 6 to 8 mm | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
