99 5682 00 07 | binder

Jack, 7 pole, solder connection, screw locking, straight, 99 5682 00 07

Order No.: 66P4604
EAN: 4099889702040
MPN:
99 5682 00 07
Series: 423

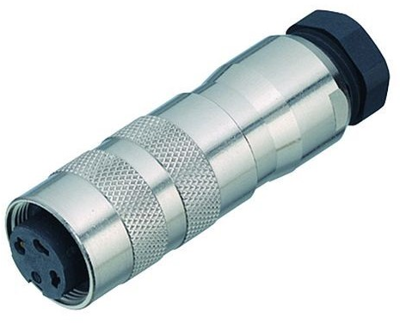

99 5682 00 07 binder Other Circular Connectors Image 1
99 5682 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.2193 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.22 € *
Price list
Quantity
Price per unit*
1 pcs.
17.2193 €
10 pcs.
16.0293 €
50 pcs.
14.8988 €
100 pcs.
13.8516 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-5682-00-07, BINDER

M16 IP67 Female cable connector, Contacts: 7 DIN, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Pin number 7 pole
Version jack
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
