99 5672 19 08 | binder

Jack, 8 pole, solder connection, screw locking, straight, 99 5672 19 08

Order No.: 66P4597
EAN: 4099889702033
MPN:
99 5672 19 08
Series: 423
99 5672 19 08 binder Other Circular Connectors Image 1
99 5672 19 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.6334 € *
Next delivery: 20 pcs. on 2025-08-07
Total Price:
23.63 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6334 €
10 pcs.
20.8012 €
50 pcs.
19.3732 €
150 pcs.
18.5402 €
500 pcs.
17.5882 €
*incl. VAT plus shipping costs
Subject to prior sale

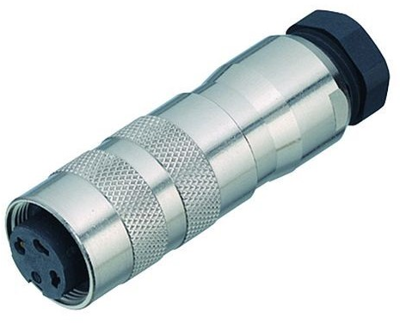

Miniature connector, 99-5672-19-08, BINDER

M16 IP67 Female cable connector, Contacts: 8 DIN, 6.0-8.0 mm, shieldable, solder, IP68, UL.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Version jack
Contact connection solder connection
Cable cross-section 0.75 mm²
Orientation straight
Cable diameter 6 to 8 mm
contact surface gold-plated
Pin number 8 pole
Type of locking screw locking
Shell Material CuZn
Assembly cable assembly
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
