99 5671 75 08 | binder

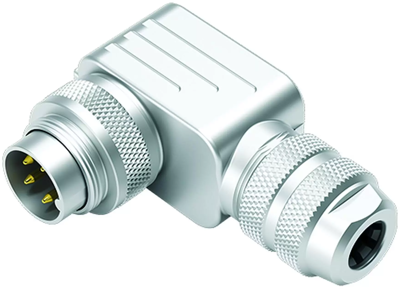

Angle plug, 8 pole, solder connection, screw locking, angled, 99 5671 75 08
Unit Price (€ / pc.)
18.4450 € *
Available: 8 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
18.45 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4450 €
10 pcs.
17.3383 €
50 pcs.
16.2911 €
100 pcs.
15.3034 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug connector, 99 5671 75 08, Franz Binder
M16 Male angled connector, Contacts: 8 (08-a), 6.0-8.0 mm, shieldable, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Shell Material | copper zinc alloy | |
| Cable cross-section | 0.75 mm² | |
| Version | angle plug | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Cable diameter | 6 to 8 mm | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
