99 5661 75 19 | binder

Angle plug, 19 pole, solder connection, screw locking, angled, 99 5661 75 19

Order No.: 66P4583
EAN: 4099889702019
MPN:
99 5661 75 19
Series: 423

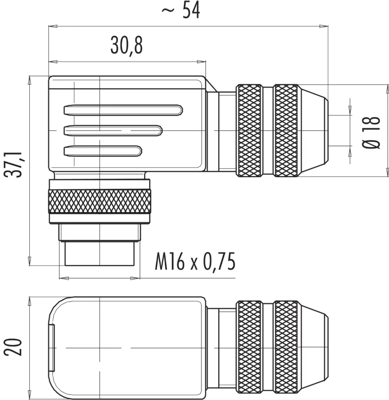

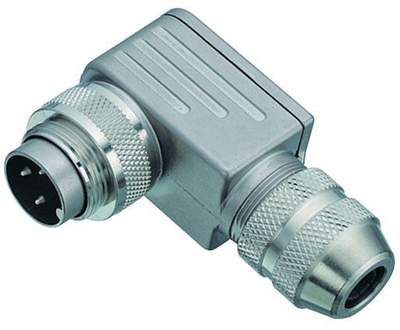

99 5661 75 19 binder Other Circular Connectors Image 1
99 5661 75 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
41.3882 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
41.39 € *
Price list
Quantity
Price per unit*
1 pcs.
41.3882 €
5 pcs.
38.9011 €
15 pcs.
37.4255 €
50 pcs.
35.7714 €
150 pcs.
34.2601 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5661-75-19, BINDER

M16 IP67 Male angled connector, Contacts: 19, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Version angle plug
Cable cross-section 0.25 mm²
Pin number 19 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material brass
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
