Jack, 7 pole, solder connection, screw locking, straight, 99 5626 00 07
Unit Price (€ / pc.)
21.4438 € *
Available: 40 pcs.
Total Price:
21.44 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4438 €
10 pcs.
18.8615 €
50 pcs.
17.5763 €
150 pcs.
16.8028 €
500 pcs.
15.9579 €
*incl. VAT plus shipping costs
Subject to prior sale

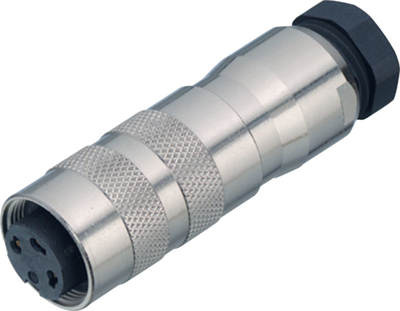

Female cable connector, 99-5626-00-07, Franz Binder
M16 IP67 Female connector, poles 7, 6.0-8.0 mm, shieldable, solder, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | jack | |
| Contact connection | solder connection | |
| Pin number | 7 pole | |
| Cable diameter | 6 to 8 mm | |
| Shell Material | brass |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
