99 5622 750 06 | binder

Angle coupling, 6 pole, crimp connection, screw locking, angled, 99 5622 750 06

Order No.: 70P0227
EAN: 4099891694814
MPN:
99 5622 750 06
Series: 423

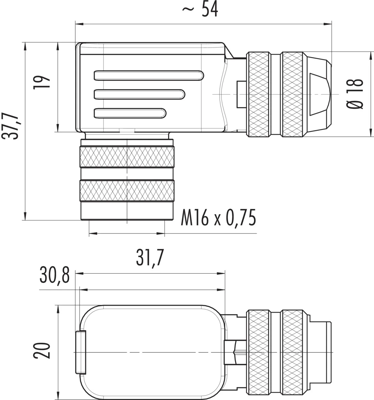

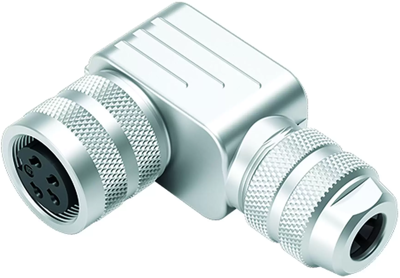

99 5622 750 06 binder Other Circular Connectors Image 1
99 5622 750 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.4454 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.45 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4454 €
10 pcs.
16.2316 €
50 pcs.
15.0892 €
100 pcs.
14.0301 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 99 5622 750 06, binder

M16 IP67 Female angled connector, Contacts: 6 DIN, 6.0-8.0 mm, shieldable, crimping, IP67, UL.

Technical specifications
Filter Property Value
Pin number 6 pole
Shell Material CuZn
Version angle coupling
Assembly cable assembly
Additional parts unequipped
Cable diameter 6 to 8 mm
Orientation angled
Type of locking screw locking
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
