99 5614 210 05 | binder

Jack, 5 pole, screw connection, screw locking, straight, 99 5614 210 05

Order No.: 66P4535
EAN: 4099889701975
MPN:
99 5614 210 05
Series: 423

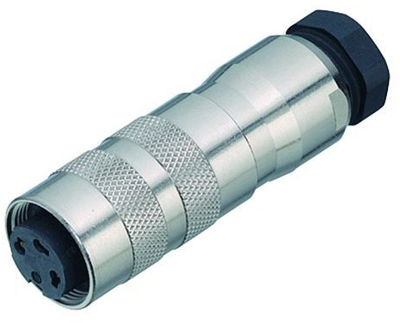

99 5614 210 05 binder Other Circular Connectors Image 1
99 5614 210 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.0618 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.06 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0618 €
5 pcs.
22.6100 €
15 pcs.
21.7532 €
50 pcs.
20.8012 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5614-210-05, BINDER

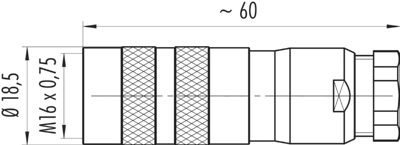

M16 IP67 Female cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection screw connection
Pin number 5 pole
Version jack
Orientation straight
Logistics
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
