99 5613 00 05 | binder

Plug, 5 pole, solder connection, screw locking, straight, 99 5613 00 05

Order No.: 70P2117
EAN: 4099891704902
MPN:
99 5613 00 05
Series: 423

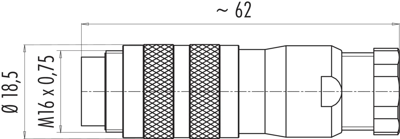

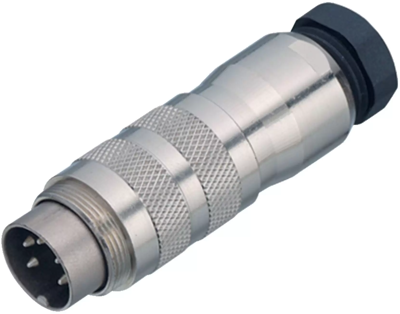

99 5613 00 05 binder Other Circular Connectors Image 1
99 5613 00 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.8381 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.84 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8381 €
10 pcs.
16.6005 €
50 pcs.
15.4343 €
100 pcs.
14.3633 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 5613 00 05, binder

M16 IP67 Male cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 5 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
