99 5610 210 04 | binder

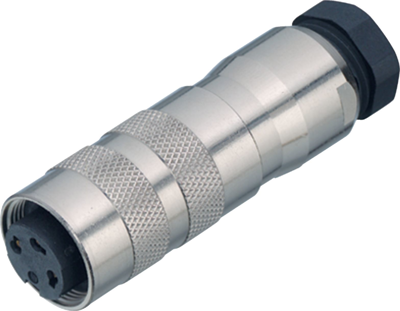

Jack, 4 pole, screw connection, screw locking, straight, 99 5610 210 04
Unit Price (€ / pc.)
27.2748 € *
Available: 25 pcs.
Total Price:
27.27 € *
Price list
Quantity
Price per unit*
1 pcs.
27.2748 €
10 pcs.
23.9904 €
50 pcs.
22.3601 €
150 pcs.
21.3724 €
500 pcs.
20.2895 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99-5610-210-04, Franz Binder
M16 IP67 Female connector, poles 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable cross-section | 0.25-1.5 mm² | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | jack | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Cable diameter | 6 to 8 mm | |
| Shell Material | brass |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
