99 5610 00 04 | binder
Jack, 4 pole, solder connection, screw locking, straight, 99 5610 00 04
Unit Price (€ / pc.)
20.0158 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.02 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0158 €
10 pcs.
17.6120 €
50 pcs.
16.4101 €
150 pcs.
15.6961 €
500 pcs.
14.8988 €
*incl. VAT plus shipping costs
**Subject to prior sale

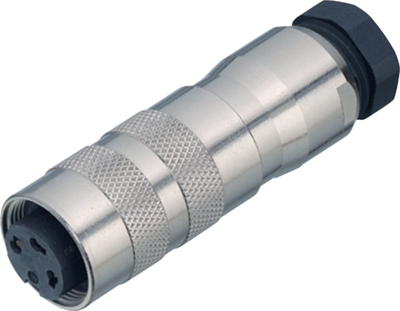

Female cable connector, 99-5610-00-04, Franz Binder
M16 IP67 Female connector, poles 4, 6.0-8.0 mm, shieldable, solder, IP67, UL
Technical specifications
| Cable diameter | 6 to 8 mm | |
| Type of locking | screw locking | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Contact connection | solder connection | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 4 pole | |
| Version | jack | |
| Shell Material | brass | |
| Orientation | straight |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
