99 5606 210 03 | binder

Jack, 3 pole, screw connection, screw locking, straight, 99 5606 210 03

Order No.: 70P0196
EAN: 4099891694500
MPN:
99 5606 210 03
Series: 423

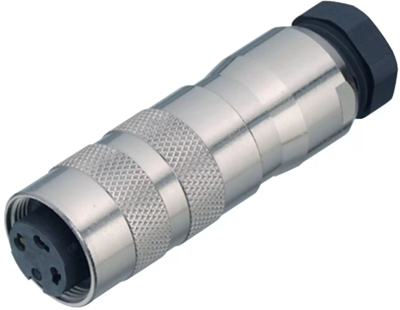

99 5606 210 03 binder Other Circular Connectors Image 1

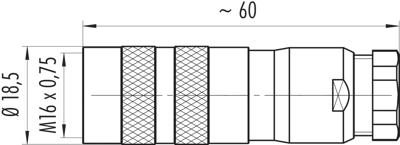

99 5606 210 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.6814 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.68 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6814 €
10 pcs.
21.3248 €
50 pcs.
20.0396 €
100 pcs.
18.8377 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 5606 210 03, binder

M16 IP67 Female cable connector, Contacts: 3 DIN, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL.

Technical specifications
Version jack
Cable cross-section 0.25-1.5 mm²
Pin number 3 pole
Orientation straight
Contact connection screw connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
