99 5602 09 02 | binder

Jack, 2 pole, solder connection, screw locking, straight, 99 5602 09 02

Order No.: 70P0188
EAN: 4099891694425
MPN:
99 5602 09 02
Series: 423

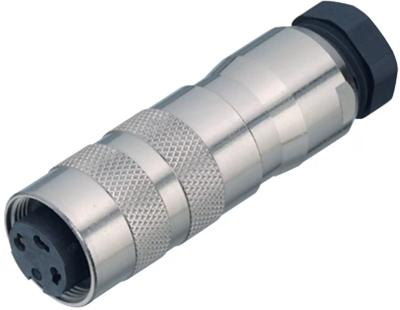

99 5602 09 02 binder Other Circular Connectors Image 1

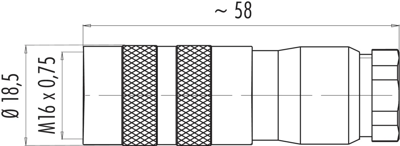

99 5602 09 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.1475 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.15 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1475 €
10 pcs.
16.8742 €
50 pcs.
15.6961 €
100 pcs.
14.6013 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 5602 09 02, binder

M16 IP67 Female cable connector, Contacts: 2, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 2 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
