99 5461 75 19 | binder

Angle plug, 19 pole, solder cup, screw locking, angled, 99 5461 75 19

Order No.: 66F6126
EAN: 4099889728064
MPN:
99 5461 75 19
Series: 423

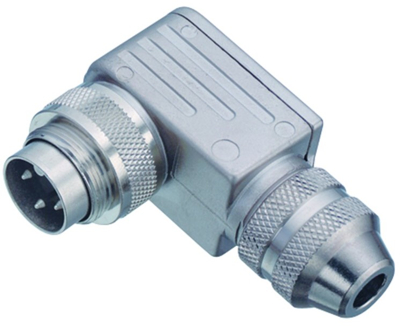

99 5461 75 19 binder Other Circular Connectors Image 1

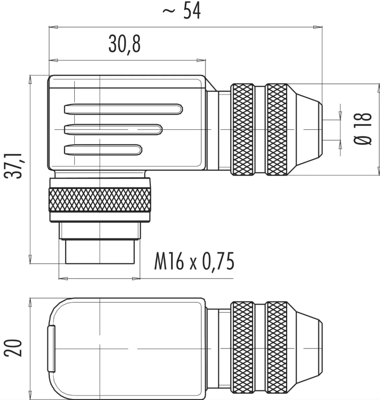

99 5461 75 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.0491 € *
Available: 20 pcs.
Total Price:
26.05 € *
Price list
Quantity
Price per unit*
1 pcs.
26.0491 €
10 pcs.
24.4783 €
25 pcs.
23.0146 €
50 pcs.
21.6342 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 99-5461-75-19, Binder

M16 IP67 male angled connector, Contacts: 19, 4.0 - 6.0 mm, shieldable, solder, IP67, UL

Technical Data

  • Contact connection: Solder cup
  • Rated voltage: 30 V
  • Number of positions: 19
  • Housing material: CuZn
  • Contact plating: Au (gold)
Technical specifications
Filter Property Value
Version angle plug
Cable cross-section 0.25 mm²
Pin number 19 pole
Orientation angled
Contact connection solder cup
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material brass
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
