99 5452 15 14 | binder
Jack, 14 pole, solder connection, screw locking, straight, 99 5452 15 14
Unit Price (€ / pc.)
25.0257 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.03 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0257 €
10 pcs.
23.5144 €
25 pcs.
22.1102 €
50 pcs.
20.7893 €
*incl. VAT plus shipping costs
**Subject to prior sale

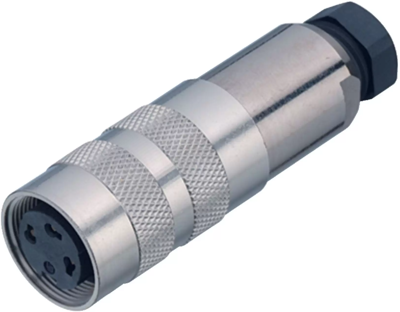

Female cable connector, 99 5452 15 14, binder

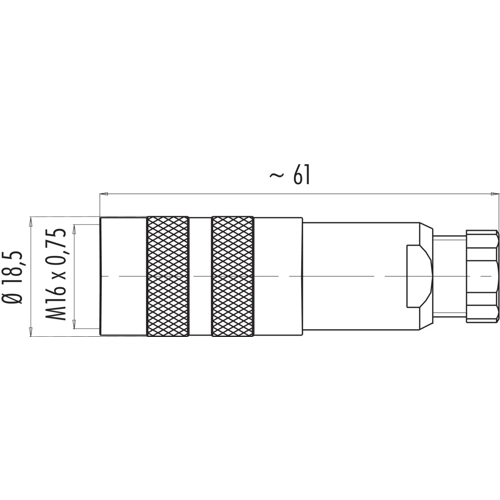

M16 IP67 Female cable connector, Contacts: 14, 4.0-6.0 mm, shieldable, solder, IP67, UL.
Technical specifications
| Version | jack | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 14 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
