99 5181 00 07 | binder

Plug, 7 pole, solder connection, screw locking, straight, 99 5181 00 07

Order No.: 66P4466
EAN: 4099889701920
MPN:
99 5181 00 07
Series: 423
99 5181 00 07 binder Other Circular Connectors Image 1
99 5181 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.2078 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.21 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2078 €
10 pcs.
15.0654 €
50 pcs.
14.0063 €
100 pcs.
13.0305 €
*incl. VAT plus shipping costs
**Subject to prior sale

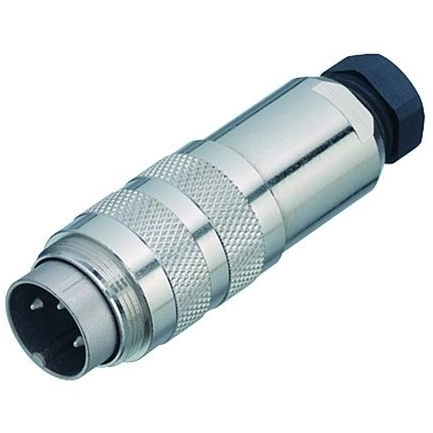

Miniature connector, 99-5181-00-07, BINDER

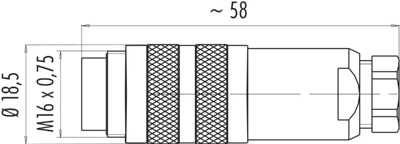

M16 IP67 Male cable connector, Contacts: 7 DIN, 4.0-6.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Pin number 7 pole
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
