99 5172 60 08 | binder
Jack, 8 pole, solder connection, screw locking, straight, 99 5172 60 08
Unit Price (€ / pc.)
21.0154 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.02 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0154 €
10 pcs.
19.7659 €
50 pcs.
18.5640 €
100 pcs.
17.4573 €
*incl. VAT plus shipping costs
Subject to prior sale

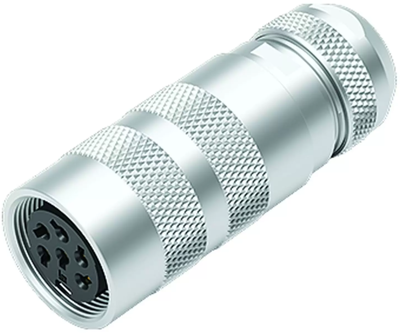

Female cable connector, 99 5172 60 08, binder
M16 IP67 Female cable connector, Contacts: 8 DIN, 4.1-7.8 mm, shieldable, solder, IP67.
Technical specifications
| Version | jack | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 4.1 to 7.8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Shell Material | CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
