99 5171 40 08 | binder

Plug, 8 pole, solder connection, screw locking, straight, 99 5171 40 08

Order No.: 70P0155
EAN: 4099891694098
MPN:
99 5171 40 08
Series: 423

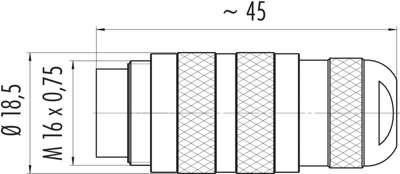

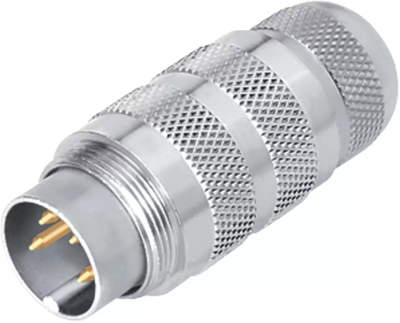

99 5171 40 08 binder Other Circular Connectors Image 1
99 5171 40 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.0892 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.09 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0892 €
10 pcs.
14.0301 €
50 pcs.
13.0424 €
100 pcs.
12.1499 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 5171 40 08, binder

M16 IP67 Male cable connector, Contacts: 8 DIN, 4.1-7.8 mm, unshielded, solder, IP68, UL.

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 8 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 4.1 to 7.8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
