99 5171 00 08 | binder

Plug, 8 pole, solder connection, screw locking, straight, 99 5171 00 08

Order No.: 66P4448
EAN: 4099889701906
MPN:
99 5171 00 08
Series: 423

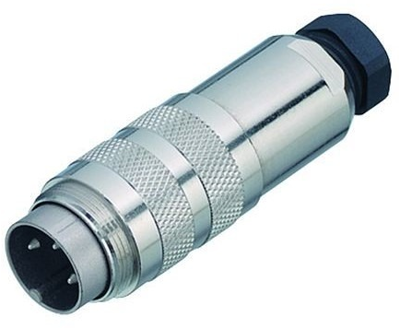

99 5171 00 08 binder Other Circular Connectors Image 1
99 5171 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.0396 € *
Available: 30 pcs.
Total Price:
20.04 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0396 €
10 pcs.
17.6358 €
50 pcs.
16.4220 €
150 pcs.
15.7199 €
500 pcs.
14.9107 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5171-00-08, BINDER

M16 IP67 Male cable connector, Contacts: 8 DIN, 4.0-6.0 mm, shieldable, solder, IP68, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Pin number 8 pole
Version plug
Assembly cable assembly
contact surface silver-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
