99 5152 40 14 | binder

Jack, 14 pole, solder connection, screw locking, straight, 99 5152 40 14

Order No.: 66P4447
EAN: 4099889701890
MPN:
99 5152 40 14
Series: 423

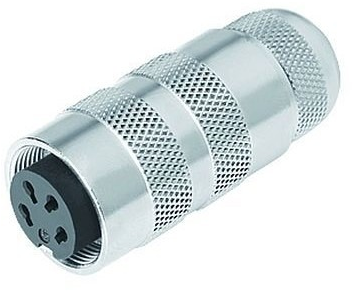

99 5152 40 14 binder Other Circular Connectors Image 1

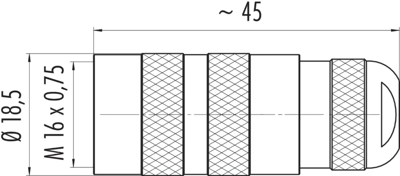

99 5152 40 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.7191 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.72 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7191 €
10 pcs.
16.4934 €
50 pcs.
15.3272 €
100 pcs.
14.2562 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5152-40-14, BINDER

M16 IP67 Female cable connector, Contacts: 14, 4.1-7.8 mm, unshielded, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Version jack
Orientation straight
Pin number 14 pole
Contact connection solder connection
Assembly cable assembly
Type of locking screw locking
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
