99 5130 40 12 | binder
Jack, 12 pole, solder connection, screw locking, straight, 99 5130 40 12
Unit Price (€ / pc.)
20.4680 € *
Available: 8 pcs.
Total Price:
20.47 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4680 €
10 pcs.
18.0166 €
50 pcs.
16.7790 €
150 pcs.
16.0650 €
500 pcs.
15.2320 €
*incl. VAT plus shipping costs
Subject to prior sale

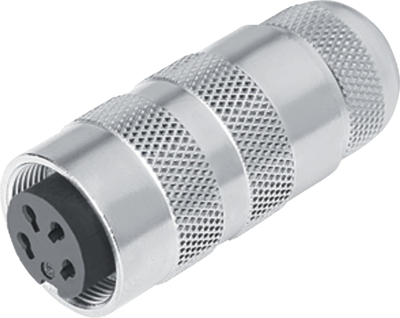

Female cable connector, 99-5130-40-12, Franz Binder
M16 IP67 Female connector, poles 12, 4.1-7.8 mm, unshielded, solder, IP67, UL, Short version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Shell Material | brass | |
| Cable cross-section | 0.25 mm² | |
| Version | jack | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Cable diameter | 4.1 to 7.8 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
