99 5129 60 12 | binder

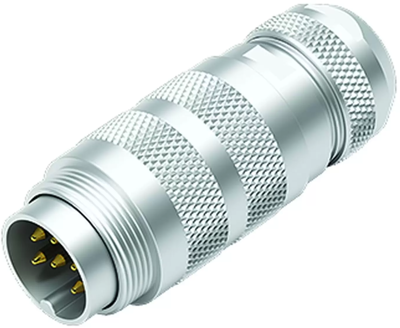

Plug, 12 pole, solder connection, screw locking, straight, 99 5129 60 12
Unit Price (€ / pc.)
21.4438 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.44 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4438 €
10 pcs.
20.1467 €
50 pcs.
18.9329 €
100 pcs.
17.8024 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99 5129 60 12, binder
M16 IP67 Male cable connector, Contacts: 12, 4.1-7.8 mm, shieldable, solder, IP68.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 12 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 4.1 to 7.8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | CuZn |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
