99 5126 750 07 | binder
Angle coupling, 7 pole, crimp connection, screw locking, angled, 99 5126 750 07
Unit Price (€ / pc.)
16.7076 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
16.71 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7076 €
10 pcs.
15.5414 €
50 pcs.
14.4704 €
100 pcs.
13.4470 €
*incl. VAT plus shipping costs
Subject to prior sale

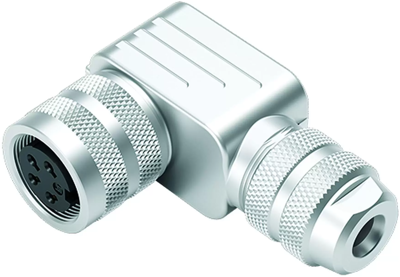

Female angled connector, 99 5126 750 07, binder

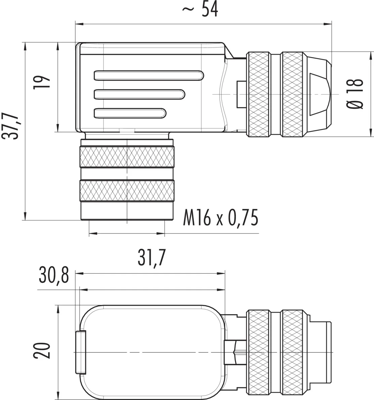

M16 IP67 Female angled connector, Contacts: 7, 4.0-6.0 mm, shieldable, crimping, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Version | angle coupling | |
| Contact connection | crimp connection | |
| Pin number | 7 pole | |
| Cable diameter | 4 to 6 mm | |
| Shell Material | CuZn |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
