99 5125 760 07 | binder
Plug, 7 pole, crimp connection, screw locking, straight, 99 5125 760 07
Unit Price (€ / pc.)
16.0412 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
16.04 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0412 €
10 pcs.
14.9226 €
50 pcs.
13.8873 €
100 pcs.
12.9115 €
*incl. VAT plus shipping costs
Subject to prior sale

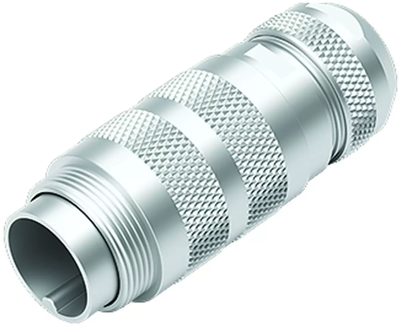

Male cable connector, 99 5125 760 07, binder
M16 IP67 Male cable connector, Contacts: 7, 4.1-7.8 mm, shieldable, crimping, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Shell Material | CuZn | |
| Additional parts | unequipped | |
| Cable diameter | 4.1 to 7.8 mm | |
| Orientation | straight | |
| Pin number | 7 pole | |
| Version | plug | |
| Type of locking | screw locking | |
| Cable cross-section | 0.14-0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
