99 5125 40 07 | binder
Plug, 7 pole, solder connection, screw locking, straight, 99 5125 40 07
Unit Price (€ / pc.)
15.3986 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
15.40 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3986 €
10 pcs.
13.5422 €
50 pcs.
12.6259 €
150 pcs.
12.0666 €
500 pcs.
11.4478 €
*incl. VAT plus shipping costs
**Subject to prior sale

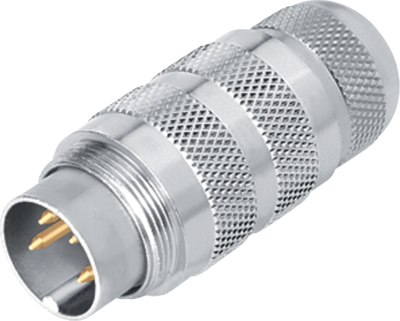

Male cable connector, 99-5125-40-07, Franz Binder
M16 IP67 Male connector, poles 7, 4.1-7.8 mm, unshielded, solder, IP67, UL, Short version
Technical specifications
| Version | Stecker | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 7-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 4,1 bis 7,8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | Messing |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
