99 5122 79 06 | binder

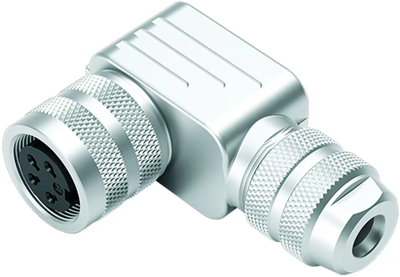

Angle coupling, 6 pole, solder connection, screw locking, angled, 99 5122 79 06

Order No.: 70P0144
EAN: 4099891693985
MPN:
99 5122 79 06
Series: 423
99 5122 79 06 binder Other Circular Connectors Image 1
99 5122 79 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.0511 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.05 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0511 €
10 pcs.
19.8016 €
50 pcs.
18.6116 €
100 pcs.
17.4930 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female angled connector, 99 5122 79 06, binder

M16 IP67 Female angled connector, Contacts: 6 DIN, 4.0-6.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version angle coupling
Cable cross-section 0.75 mm²
Pin number 6 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
