99 5121 00 06 | binder
Plug, 6 pole, solder connection, screw locking, straight, 99 5121 00 06
Unit Price (€ / pc.)
24.9543 € *
Available: 49 pcs.
Total Price:
24.95 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9543 €
10 pcs.
21.9555 €
50 pcs.
20.4561 €
150 pcs.
19.5755 €
500 pcs.
18.5640 €
*incl. VAT plus shipping costs
Subject to prior sale

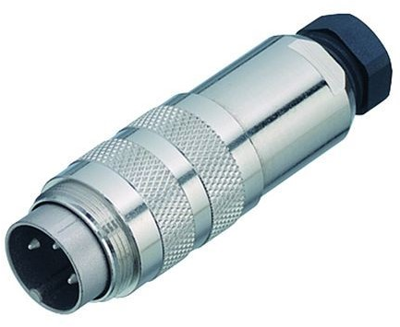

Miniature connector, 99-5121-00-06, BINDER

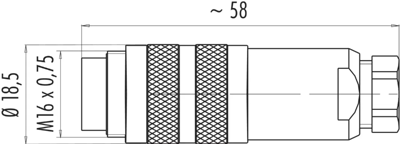

M16 IP67 Male cable connector, Contacts: 6 DIN, 4.0-6.0 mm, shieldable, solder, IP67, UL.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | plug | |
| Contact connection | solder connection | |
| Pin number | 6 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
