99 5114 750 05 | binder

Angle coupling, 5 pole, crimp connection, screw locking, angled, 99 5114 750 05

Order No.: 70P0128
EAN: 4099891693824
MPN:
99 5114 750 05
Series: 423

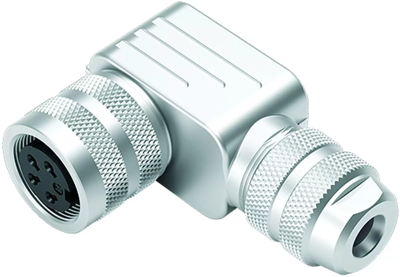

99 5114 750 05 binder Other Circular Connectors Image 1

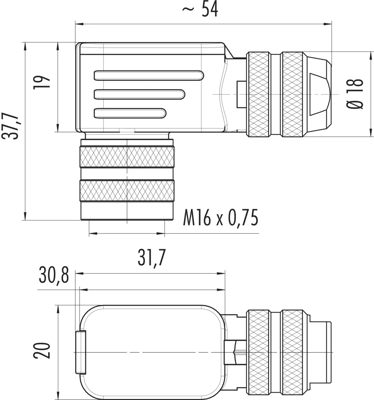

99 5114 750 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.7076 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
16.71 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7076 €
10 pcs.
15.5414 €
50 pcs.
14.4704 €
100 pcs.
13.4470 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 99 5114 750 05, binder

M16 IP67 Female angled connector, Contacts: 5, 4.0-6.0 mm, shieldable, crimping, IP67, UL.

Technical specifications
Filter Property Value
Cable diameter 4 to 6 mm
Additional parts unequipped
Pin number 5 pole
Orientation angled
Type of locking screw locking
Assembly cable assembly
Contact connection crimp connection
Version angle coupling
Shell Material CuZn
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
