99 5114 700 05 | binder
Jack, 5 pole, crimp connection, screw locking, straight, 99 5114 700 05
Unit Price (€ / pc.)
16.3506 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
16.35 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3506 €
10 pcs.
15.1963 €
50 pcs.
14.1372 €
100 pcs.
13.1376 €
*incl. VAT plus shipping costs
Subject to prior sale

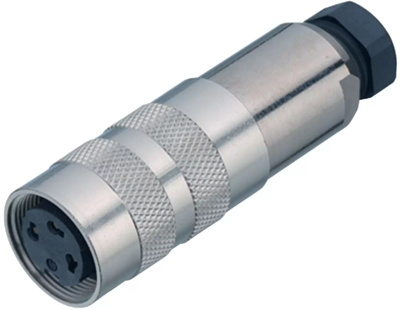

Female cable connector, 99 5114 700 05, binder
M16 IP67 Female cable connector, Contacts: 5, 4.0-6.0 mm, shieldable, crimping, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Shell Material | CuZn | |
| Version | jack | |
| Assembly | cable assembly | |
| Additional parts | unequipped | |
| Cable diameter | 4 to 6 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
