99 5114 40 05 | binder
Jack, 5 pole, solder connection, screw locking, straight, 99 5114 40 05
Unit Price (€ / pc.)
   15.4105 €  *
   Available: 20 pcs.
 Total Price:
  15.41 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 15.4105 €
 10 pcs.
 13.5660 €
 50 pcs.
 12.6378 €
 150 pcs.
 12.0904 €
 500 pcs.
 11.4597 €
  *incl. VAT plus shipping costs
  Subject to prior sale

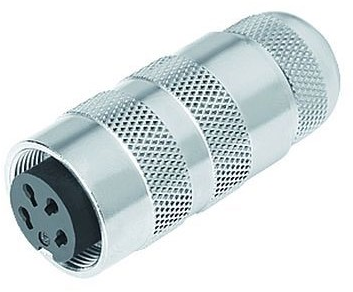

 Miniature connector, 99-5114-40-05, BINDER

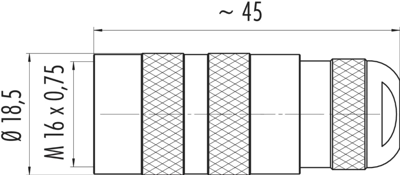

M16 IP67 Female cable connector, Contacts: 5, 4.1-7.8 mm, unshielded, solder, IP67, UL.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 1
- Overvoltage category: I
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Version | jack | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
