99 5113 750 05 | binder
Angle plug, 5 pole, crimp connection, screw locking, angled, 99 5113 750 05
As a private customer, you can buy this item as soon as we have it back in stock.

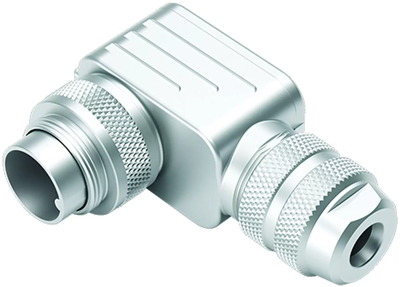

Male angled connector, 99 5113 750 05, binder
M16 IP67 Male angled connector, Contacts: 5, 4.0-6.0 mm, shieldable, crimping, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | angle plug | |
| Cable cross-section | 0.14-1.0 mm² | |
| Pin number | 5 pole | |
| Orientation | angled | |
| Contact connection | crimp connection | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | unequipped | |
| contact surface | silver-plated | |
| Shell Material | CuZn |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
