99 5113 740 05 | binder

Plug, 5 pole, crimp connection, screw locking, straight, 99 5113 740 05

Order No.: 70P2112
EAN: 4099891704858
MPN:
99 5113 740 05
Series: 423

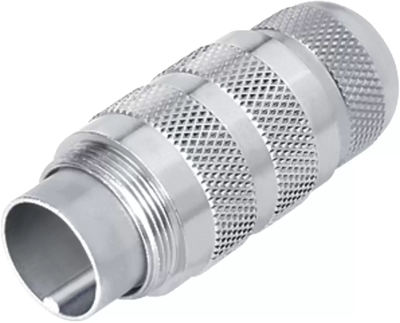

99 5113 740 05 binder Other Circular Connectors Image 1

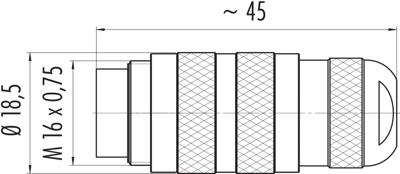

99 5113 740 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.9357 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.94 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9357 €
10 pcs.
11.0908 €
50 pcs.
10.3173 €
100 pcs.
9.2820 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 5113 740 05, binder

M16 IP67 Male cable connector, Contacts: 5, 4.1-7.8 mm, unshielded, crimping, IP67, UL.

Technical specifications
Filter Property Value
Pin number 5 pole
Shell Material CuZn
Version plug
Assembly cable assembly
Additional parts unequipped
Cable diameter 4.1 to 7.8 mm
Orientation straight
Type of locking screw locking
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
