99 5113 700 05 | binder

Plug, 5 pole, crimp connection, screw locking, straight, 99 5113 700 05

Order No.: 66P4380
EAN: 4099889701838
MPN:
99 5113 700 05
Series: 423

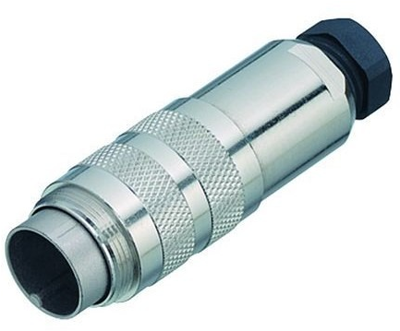

99 5113 700 05 binder Other Circular Connectors Image 1

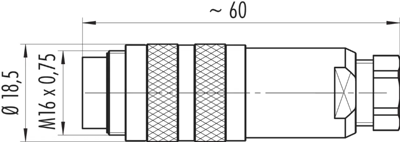

99 5113 700 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.8274 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
14.83 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8274 €
10 pcs.
13.0305 €
50 pcs.
12.1499 €
150 pcs.
11.6144 €
500 pcs.
11.0313 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5113-700-05, BINDER

M16 IP67 Male cable connector, Contacts: 5, 4.0-6.0 mm, shieldable, crimp, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Version plug
Orientation straight
Shell Material brass
Pin number 5 pole
Additional parts unequipped
Contact connection crimp connection
Cable diameter 4 to 6 mm
Assembly cable assembly
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
