99 5113 00 05 | binder

Plug, 5 pole, solder connection, screw locking, straight, 99 5113 00 05

Order No.: 66P4375
EAN: 4099889701814
MPN:
99 5113 00 05
Series: 423

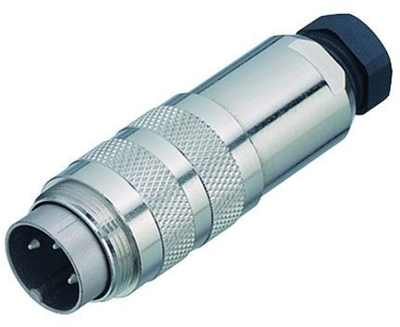

99 5113 00 05 binder Other Circular Connectors Image 1

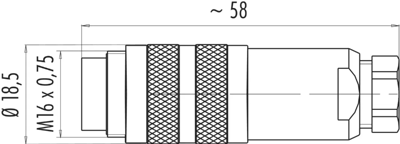

99 5113 00 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.5767 € *
Available: 14 pcs.
Total Price:
16.58 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5767 €
10 pcs.
15.4224 €
50 pcs.
14.1848 €
100 pcs.
12.9115 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5113-00-05, BINDER

M16 IP67 Male cable connector, Contacts: 5, 4.0-6.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Version plug
Orientation straight
Pin number 5 pole
Contact connection solder connection
contact surface silver-plated
Assembly cable assembly
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
