99 5110 760 04 | binder
Jack, 4 pole, crimp connection, screw locking, straight, 99 5110 760 04
Unit Price (€ / pc.)
16.3387 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
16.34 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3387 €
10 pcs.
15.1963 €
50 pcs.
14.1372 €
100 pcs.
13.1376 €
*incl. VAT plus shipping costs
Subject to prior sale

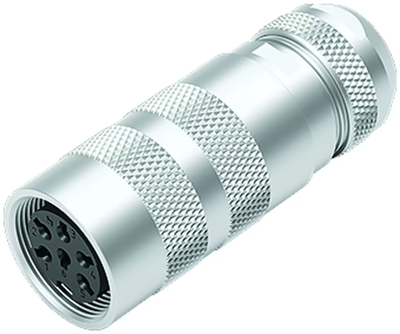

Female cable connector, 99 5110 760 04, binder
M16 IP67 Female cable connector, Contacts: 4, 4.1-7.8 mm, shieldable, crimping, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Cable cross-section | 0.14-1.0 mm² | |
| Version | jack | |
| Additional parts | unequipped | |
| Pin number | 4 pole | |
| Contact connection | crimp connection | |
| Orientation | straight | |
| Shell Material | CuZn | |
| Cable diameter | 4.1 to 7.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
