99 5110 740 04 | binder

Jack, 4 pole, crimp connection, snap lock, straight, 99 5110 740 04

Order No.: 66P4373
EAN: 4099889729672
MPN:
99 5110 740 04
Series: 423

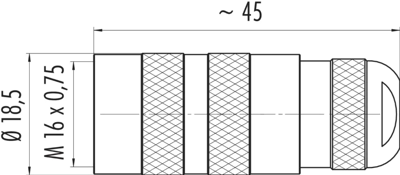

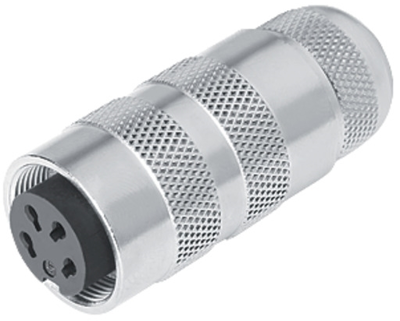

99 5110 740 04 binder Other Circular Connectors Image 1
99 5110 740 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.3768 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
10.38 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3768 €
10 pcs.
9.6509 €
50 pcs.
8.9726 €
100 pcs.
8.0682 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 99-5110-740-04, Binder

M16 IP67 Female cable connector, Contacts: 4, 4.0-8.0 mm, unshielded, crimping, IP67, UL, Short version

Technical specifications
Filter Property Value
Version jack
Orientation straight
Shell Material zinc die casting
Pin number 4 pole
Cable cross-section 0.14-1.0 mm²
Additional parts unequipped
Contact connection crimp connection
Cable diameter 4.1 to 7.8 mm
Assembly cable assembly
Type of locking snap lock
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
